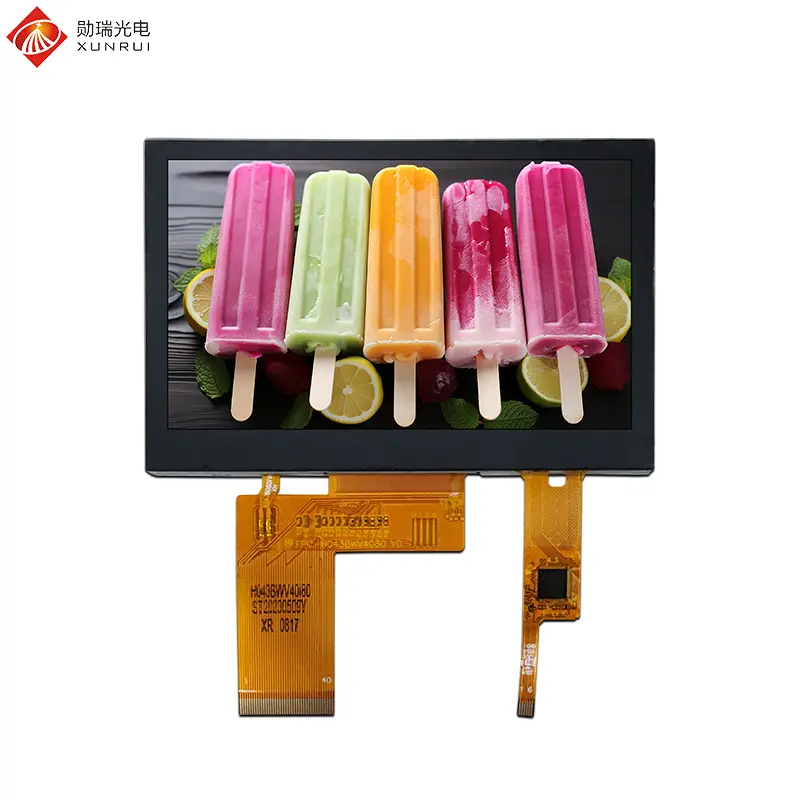

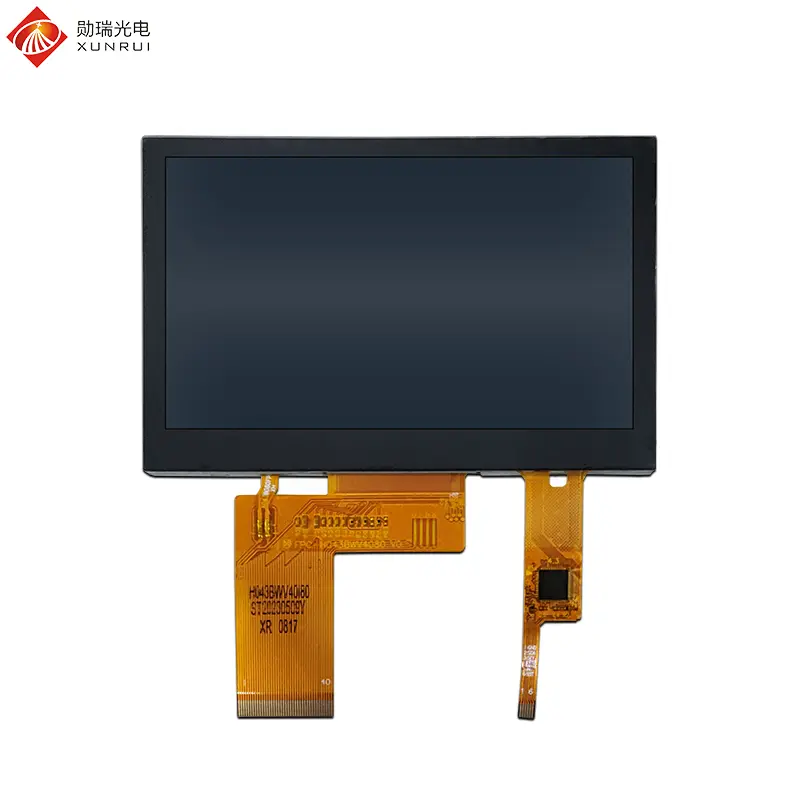

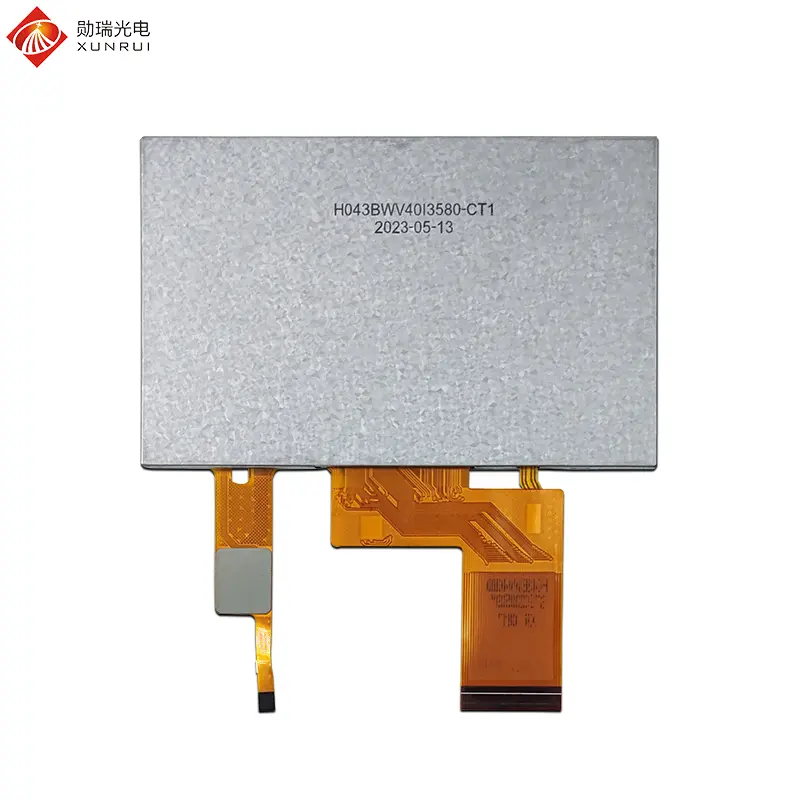

Product Description
H043BWV40I3580-CT1 is a 4.3 inch TFT LCD module with capacitive touch function. It is a capacitive touch screen that locates by detecting changes in human capacitance and supports multi-touch (typically 5 points), providing a better experience, but is sensitive to humid environments. This LCD screen adopts IPS full-view technology, with a resolution of 800×480 (approximately 217 PPI), and has sufficient display clarity, suitable for graphic and video interfaces. It has a 24-bit RGB 40-pin interface, ST7262 Driver IC, which is easy to connect with mainstream MCUs (such as STM32, ESP32), with a brightness of 290 nit, and the operating temperature can withstand -20℃ to +70℃. This 4.3 inch TFT LCD Display is mainly applied in vehicle-mounted and outdoor systems: vehicle information terminals, electric vehicle dashboards, etc., supporting graphic and text navigation. Industrial control and automation: used as a human-machine interface (HMI) for PLC terminals, embedded hosts. In addition, it can also be applied in consumer electronics, medical devices, smart home and other fields. This 4.3 inch 800×480 capacitive touch screen is indeed an ideal solution for industrial and consumer electronic interaction design, especially suitable for scenarios requiring multi-touch and durability.

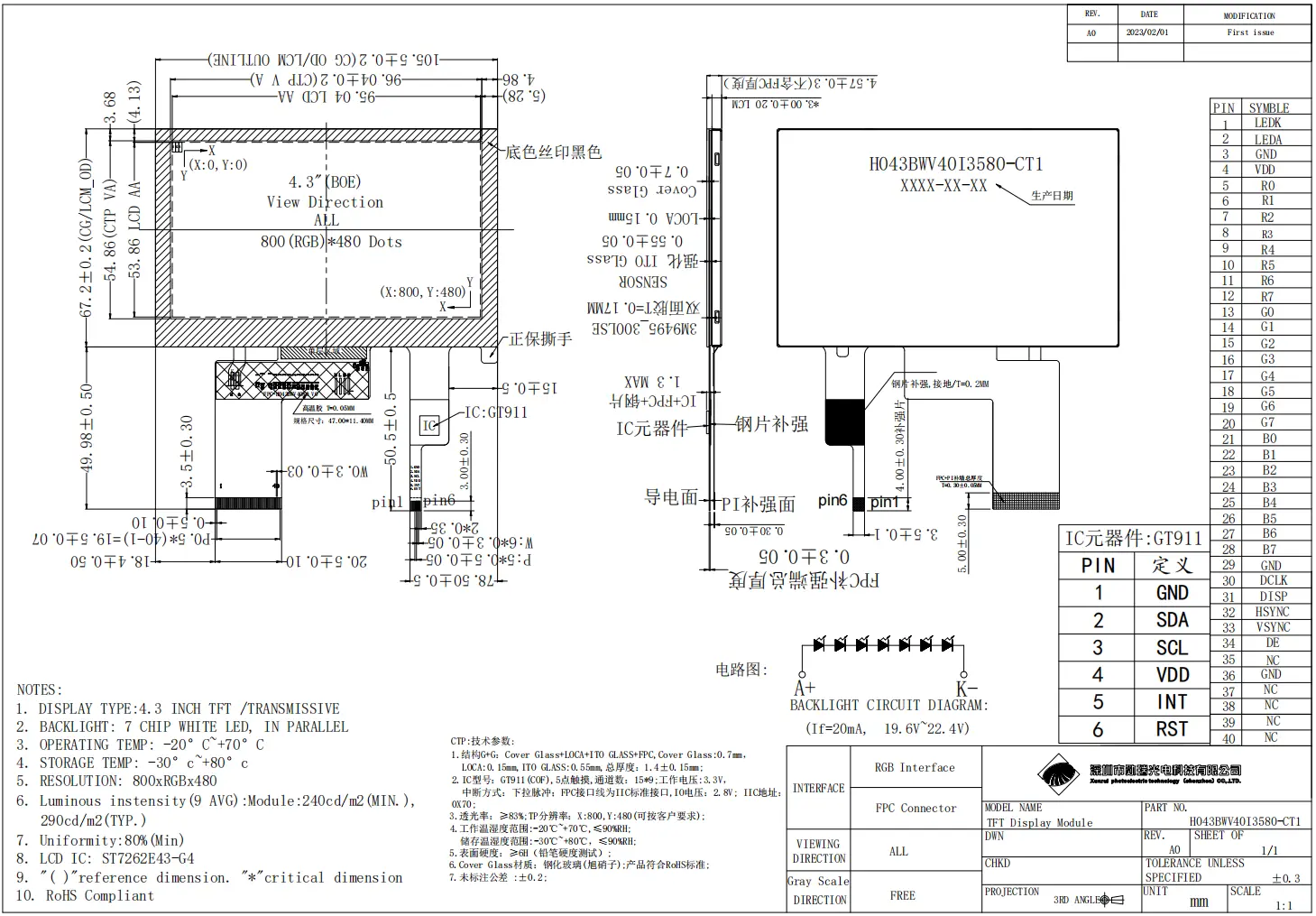

Mechanical Drawing
Specification parameters
| Feature | Spec |
|---|---|
| Model Name | H043BWV40I3580-CT1 |
| LCD Size | 4.3 inch |
| Display Format | 800×480 |
| Interface | 24-bit RGB 40pin |
| Luminance | 290 cd/m2 |
| Touch screen | capacitive touch |
| Viewing Direction | ALL |
| Color Depth | 16.7M |
| Driver IC | ST7262 |
| LCM+CTP (W x H x D) (mm) | 105.50*67.20*4.57 |
| Active Area(mm) | 95.04x53.86 |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 21V |
Interface definition
| No. | Symbol | Description |
|---|---|---|
| 1 | VBL- | Backlight LED Cathode |
| 2 | VBL+ | Backlight LED Anode. |
| 3 | GND | System Ground |
| 4 | VCC | Power supply for logic operation |
| 5~12 | R0~R7 | Data bus |
| 13~20 | G0~G7 | Data bus |
| 21~28 | B0~B7 | Data bus |
| 29 | GND | System Ground |
| 30 | CLK | Pixel clock signal |
| 31 | DISP | Display on/off control |
| 32 | HSYNC | Horizontal Sync signal |
| 33 | VSYNC | Vertical Sync signal |
| 34 | DEN | Data Enable |
| 35 | NC | No connect |
| 36 | GND | System Ground |
| 37 | NC/XR | TP pin XR |
| 38 | NC/YD | TP pin YD |
| 39 | NC/XL | TP pin XL |
| 40 | NC/YU | TP pin YU |
Frequently Asked Questions
The display features an 800×480 WVGA resolution on a 4.3-inch screen, providing a pixel density of approximately 217 PPI for crisp graphical user interfaces and clear text rendering.
The module uses the ST7262 Driver IC and a standard 24-bit RGB 40-pin interface, enabling seamless communication with mainstream MCUs and processors including STM32, ESP32, NXP i.MX, and Linux embedded boards.
Yes, the integrated projected capacitive touch screen detects changes in human capacitance and typically supports up to 5 simultaneous touch points for smooth pinching, swiping, and gesture controls.
Equipped with IPS full-view technology (ALL viewing direction), the display maintains high color fidelity, 16.7M colors, and zero contrast inversion across all viewing perspectives.
The module is engineered for industrial-grade reliability, supporting operating temperatures from -20℃ to +70℃ and storage limits between -30℃ and +80℃, suitable for vehicle dashboards, PLC HMIs, and medical instrumentation.
