Custom 10.1 inch 800×1280 MIPI IPS TFT LCD Display with capacitive touch Manufacturer, Suppliers
Product Description
Product Description

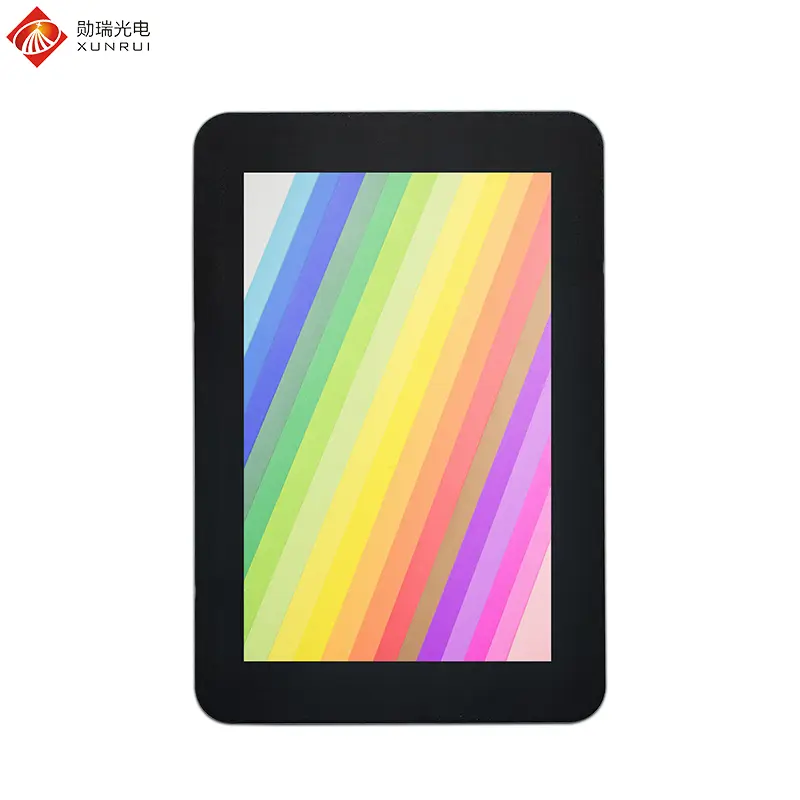

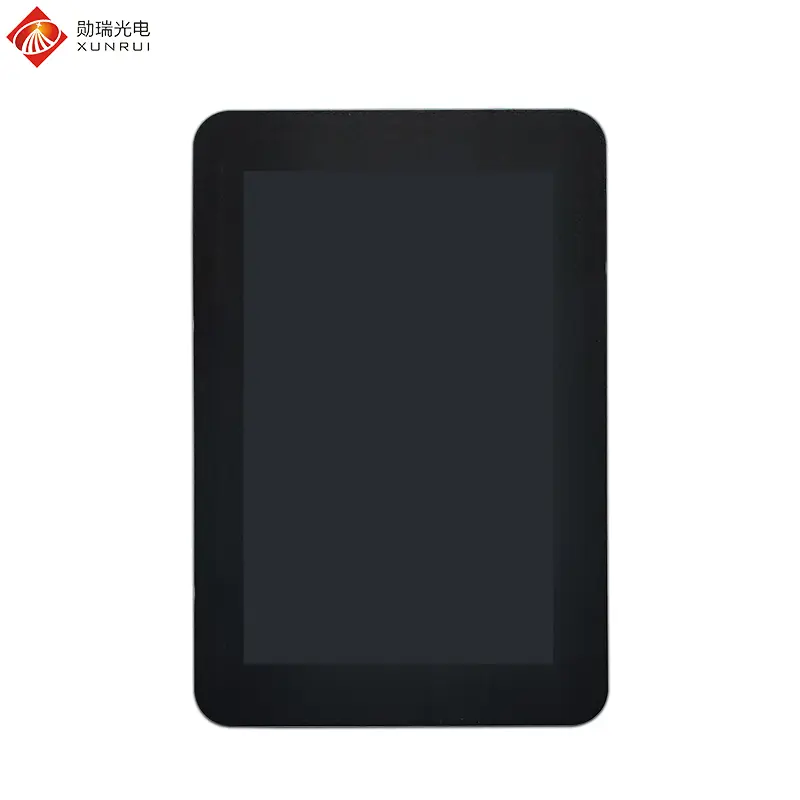

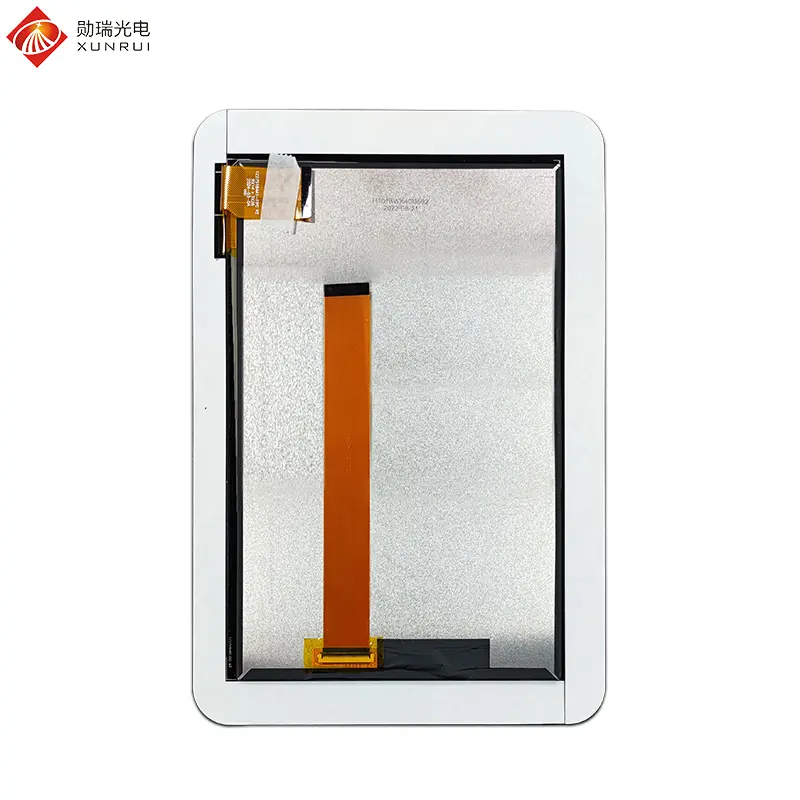

H101BWX40I3502-CT9 is a 10.1-inch TFT LCD module with capacitive touch functionality. This display utilizes an advanced IPS panel, delivering a 178° ultra-wide viewing angle alongside a 16.7M true color reproduction system. Its remarkable color consistency ensures crisp and accurate visualization from virtually any perspective. Operating at a resolution of 800×1280 (WXGA) through a high-speed MIPI 40-pin interface, it incorporates responsive capacitive multi-touch technology that supports smooth gesture interactions, greatly upgrading the user-device interface experience.
This versatile 10.1-inch TFT LCD display is ideally engineered for diverse high-demand scenarios:
Industrial Control (HMI): Optimized for automated production lines, CNC machinery, and PLC operator panels. It facilitates seamless real-time data monitoring and system configuration. The streamlined embedded construction simplifies cabinet integration, while the full-flat front panel prevents dust and water infiltration.
Medical Equipment: Well-suited for medical ultrasound units, patient diagnostic monitors, and portable healthcare instruments demanding ultra-precise graphical rendering, robust reliability, and strict compliance with medical standards.
Smart Retail & Self-Service Kiosks: Extensively deployed across vending systems, cinema ticketing terminals, hospital check-in/payment kiosks, and banking ATMs, providing dependable 24/7 continuous operation with instantaneous touch feedback.
Education & Smart Home Integration: An optimal solution for collaborative electronic whiteboards, interactive smart tablets, and home automation control centers, supporting multi-touch gesture handwriting and fluid multimedia delivery.
Medical Equipment: Well-suited for medical ultrasound units, patient diagnostic monitors, and portable healthcare instruments demanding ultra-precise graphical rendering, robust reliability, and strict compliance with medical standards.
Smart Retail & Self-Service Kiosks: Extensively deployed across vending systems, cinema ticketing terminals, hospital check-in/payment kiosks, and banking ATMs, providing dependable 24/7 continuous operation with instantaneous touch feedback.
Education & Smart Home Integration: An optimal solution for collaborative electronic whiteboards, interactive smart tablets, and home automation control centers, supporting multi-touch gesture handwriting and fluid multimedia delivery.

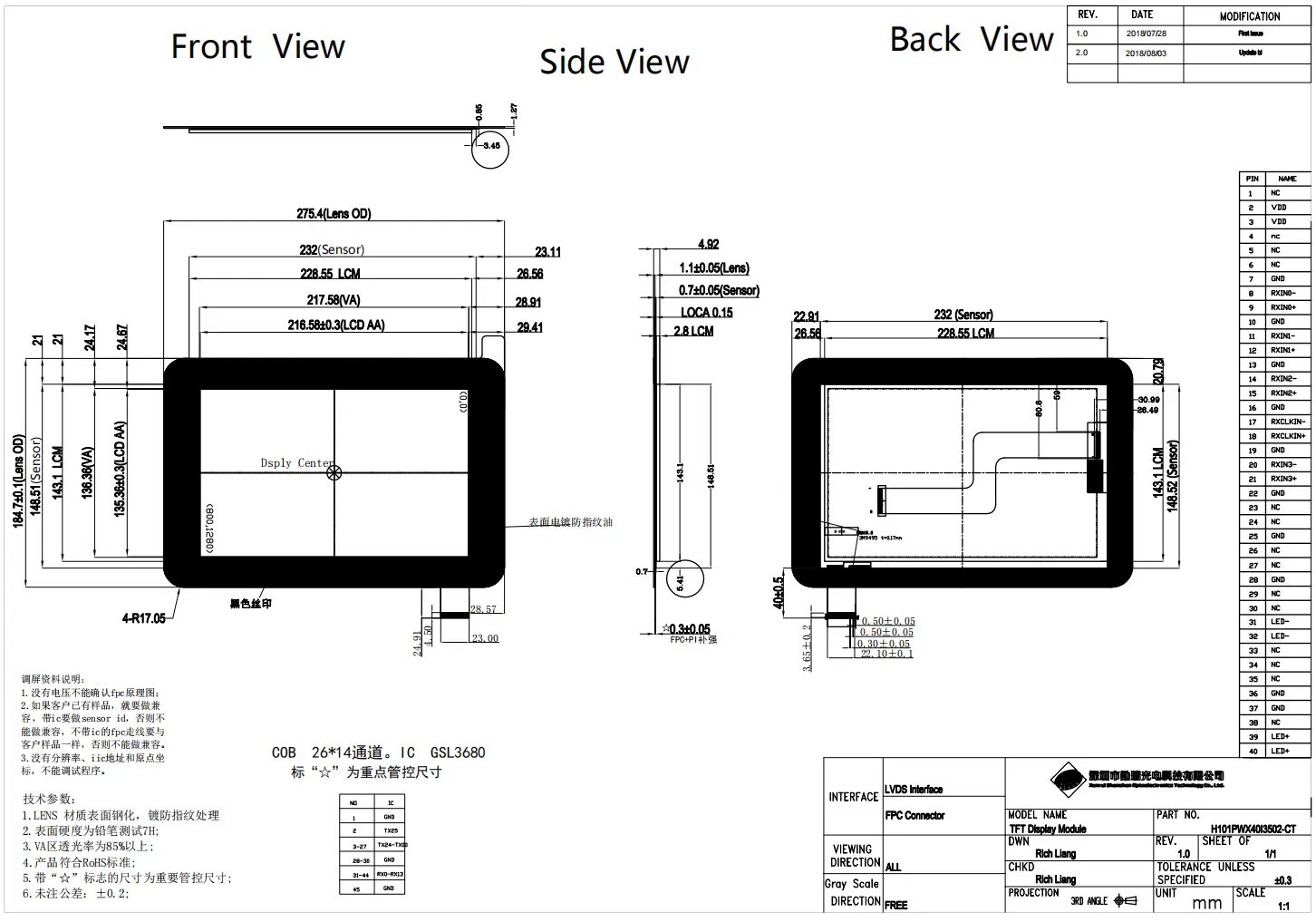

Mechanical Drawing
Specification Parameters
| Feature | Specification |
|---|---|
| Model Name | H101BWX40I3502-CT9 |
| LCD Size | 10.1 inch |
| Display Format | 800×1280 |
| Interface | MIPI 40pin |
| Luminance | 300 cd/m² |
| Touch Screen | Capacitive Touch |
| Viewing Direction | ALL (Full Viewing Angle) |
| Color Depth | 16.7M |
| Driver IC | TBD |
| LCM+CTP (W x H x D) (mm) | 275.4(W) × 184.7(H) × 4.92(D) |
| Active Area (mm) | 135.36(V) × 216.576(H) |
| Operating Temperature | -20℃ ~ +70℃ |
| Storage Temperature | -30℃ ~ +80℃ |
| Operating Voltage | 9.0V |
Interface Definition (Pin Assignment)
| Pin No. | Symbol | Type | Function |
|---|---|---|---|
| 1 | NC | - | No connection |
| 2 | VDDIN | P | Power supply 3.3V |
| 3 | VDDIN | P | Power supply 3.3V |
| 4 | GND | P | Ground |
| 5 | RESET | I | Device reset signal |
| 6 | NC | - | No connection |
| 7 | GND | P | Ground |
| 8 | MIPI-0N | I | MIPI Data negative signal |
| 9 | MIPI-0P | I | MIPI Data Positive signal |
| 10 | GND | P | Ground |
| 11 | MIPI-1N | I | MIPI Data negative signal |
| 12 | MIPI-1P | I | MIPI Data Positive signal |
| 13 | GND | P | Ground |
| 14 | MIPI-CLKN | I | MIPI clock negative signal |
| 15 | MIPI-CLKP | I | MIPI clock Positive signal |
| 16 | GND | P | Ground |
| 17 | MIPI-2N | I | MIPI Data negative signal |
| 18 | MIPI-2P | I | MIPI Data Positive signal |
| 19 | GND | P | Ground |
| 20 | MIPI-3N | I | MIPI Data negative signal |
| 21 | MIPI-3P | I | MIPI Data Positive signal |
| 22 | GND | P | Ground |
| 23 | NC | - | No connection |
| 24 | NC | - | No connection |
| 25 | GND | P | Ground |
| 26 | NC | - | No connection |
| 27 | NC | - | No connection |
| 28 | NC | - | No connection |
| 29 | NC | - | No connection |
| 30 | GND | P | Ground |
| 31 | LED- | P | Power for LED backlight (Cathode) |
| 32 | LED- | P | Power for LED backlight (Cathode) |
| 33 | NC | - | No connection |
| 34 | NC | - | No connection |
| 35 | NC | - | No connection |
| 36 | NC | - | No connection |
| 37 | NC | - | No connection |
| 38 | NC | - | No connection |
| 39 | LED+ | P | Power for LED backlight (Anode) |
| 40 | LED+ | P | Power for LED backlight (Anode) |
Featured Products
2 inch 480×240 RGB 40pin 150nit TN TFT LCD Display
2.4 inch 240×320 MCU 40pin interface 250nit TN TFT LCD module
2.8 inch 240×320 MCU 30pin interface 250nit TN TFT LCD display
3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module
4.3 inch TFT LCD 800×480 RGB 40pin interface 300nit IPS module
5 inch 800×480 1200nit High brightness TN TFT LCD module
7 inch 1024×600 1000nit High brightness IPS TFT LCD module
8 inch TFT LCD module 800×1280 MIPI 31pin interface 480nit IPS screen
10.1 inch TFT LCD module 1280×800 LVDS 40pin interface 350nit IPS screen
13.3 inch 1920×1080 EDP 30PIN 280nit IPS TFT LCD Module
Frequently Asked Questions (FAQ)
What is the primary display interface of the H101BWX40I3502-CT9 module?
The H101BWX40I3502-CT9 module features a standard 40-pin MIPI DSI interface supporting high-speed data transmission with low power consumption and EMI interference, making it ideal for compact embedded systems.
What type of touch panel technology is integrated?
It incorporates a projected capacitive touch panel (CTP) that supports multi-touch and gesture recognition, providing smooth, highly accurate, and durable touch performance for interactive applications.
What are the operating temperature capabilities of this LCD?
The display functions reliably across an industrial temperature range of -20°C to +70°C, and can withstand storage conditions from -30°C to +80°C.
Can this module maintain visibility and color accuracy from wide angles?
Yes. By adopting an IPS panel, this display delivers a full 178° all-direction viewing angle with 16.7M colors, avoiding color shifting or contrast loss when viewed off-center.
What are the key application areas for this 10.1-inch module?
It is widely deployed in industrial HMI terminals, medical diagnostic equipment, self-service automated kiosks, retail POS systems, smart home central control hubs, and educational touch panels.
What are the exact overall physical dimensions and active area?
The outer outline dimension (LCM+CTP) is 275.4(W) × 184.7(H) × 4.92(D) mm, with an active display area of 135.36(V) × 216.576(H) mm.
