Product Description

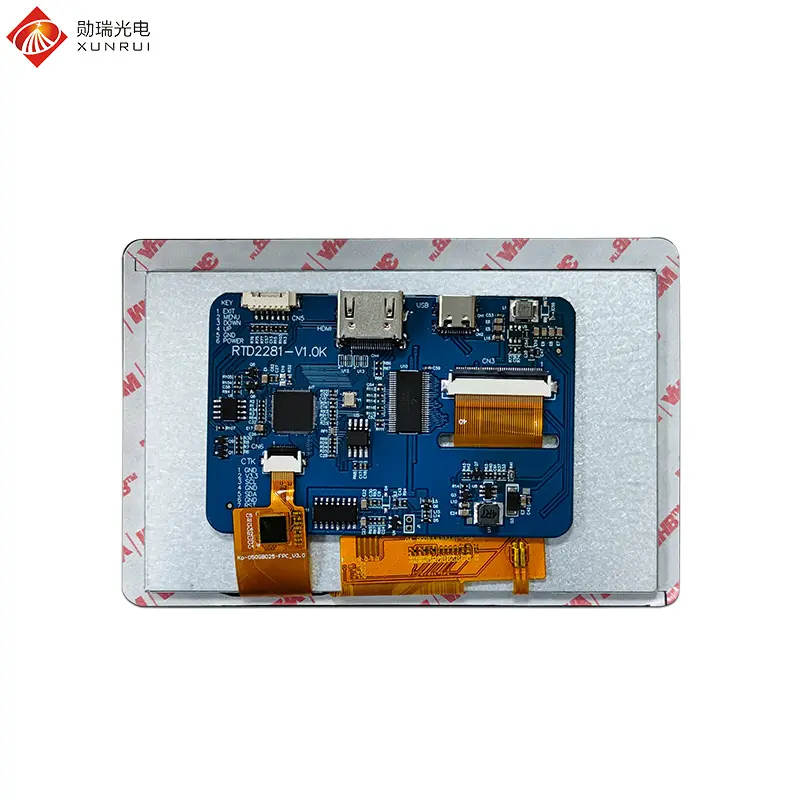

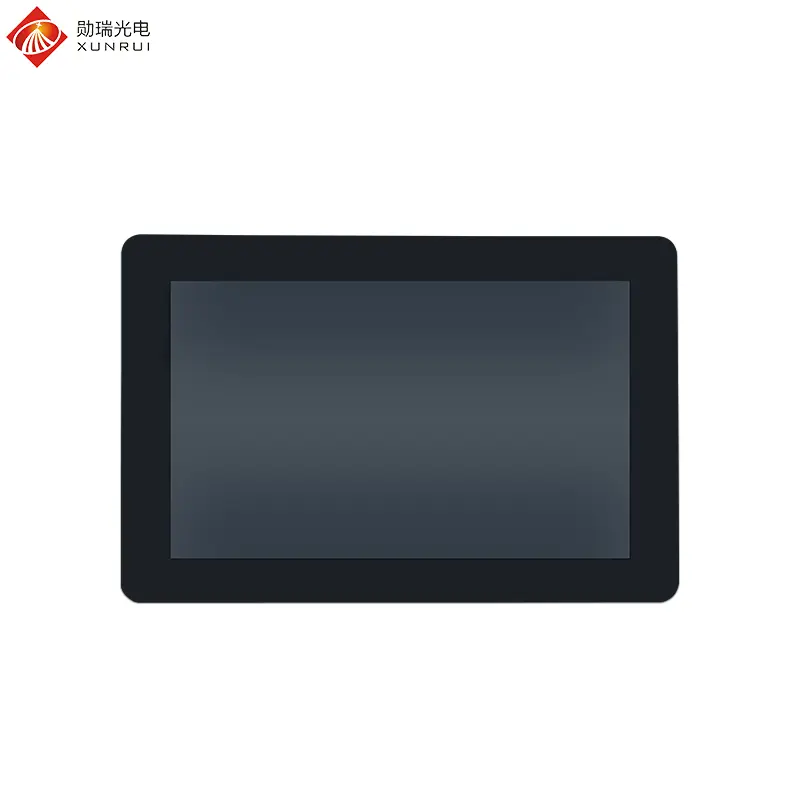

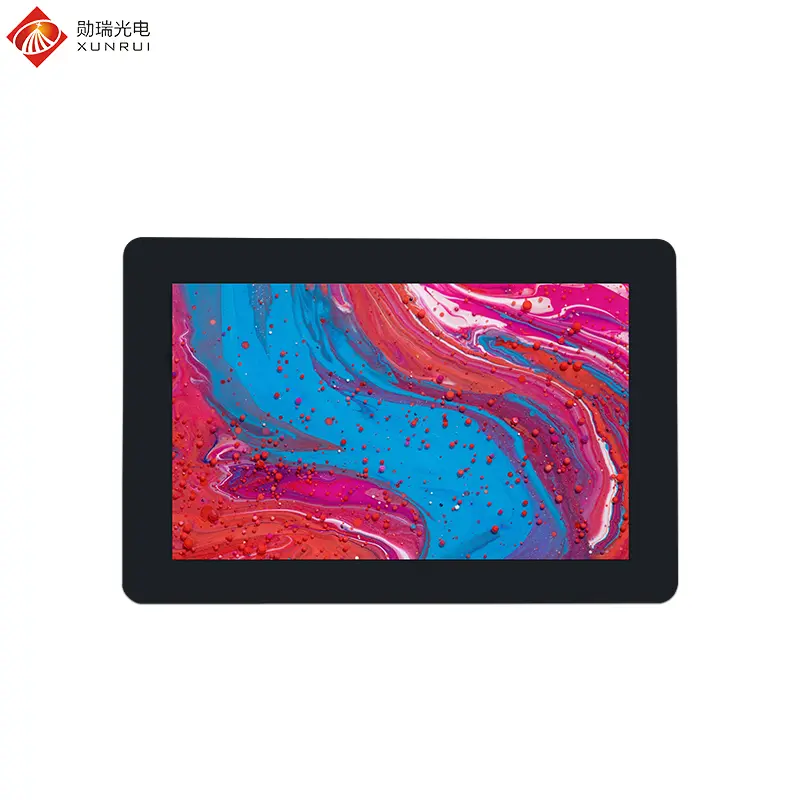

H050IWV40I3506-CT30-RTD2281-1.0K is a 5-inch TFT LCD module equipped with an HDMI driver board and capacitive touch function. It is a compact display module integrating display, touch control, and high-definition video input, widely used in embedded devices, industrial control, and intelligent terminals. This LCD screen adopts IPS full-view technology, with good color reproduction, suitable for viewing from multiple angles, featuring a resolution of 800×480, a brightness of 300 nit, meeting the requirements for image clarity, supporting direct HDMI connection, with the HDMI main interface used for video input, compatible with mainstream development boards and computers such as Raspberry Pi, NVIDIA Jetson, and PC, equipped with capacitive multi-point touch technology (supporting 2 points or more), based on ITO conductive film, with fast response, sensitive operation, and long lifespan, supporting gesture operations such as sliding and zooming, suitable for human-computer interaction scenarios, and the touch is driven through the USB interface. This 5-inch TFT LCD Display is mainly applied in industrial human-machine interfaces (HMI): used in PLC control panels, automation equipment operation screens, detection instruments, etc., to enhance operational efficiency. The wide temperature design and durable structure enable it to adapt to complex industrial environments. Embedded development: widely used in Raspberry Pi, STM32, RK series and other development platforms, as a portable secondary screen or main control interface. Medical and portable devices: used in handheld medical detection instruments, temperature monitoring terminals, health bracelet debugging screens, etc., to achieve data visualization and interaction. Vehicle and navigation systems: suitable for installation on dashboards or control consoles, for rearview mirror display, GPS navigation, driving record display, etc. Commercial display and self-service terminals: can be used as touch screens for small advertising machines, self-service ordering machines, ticket query machines, supporting user autonomous operation.

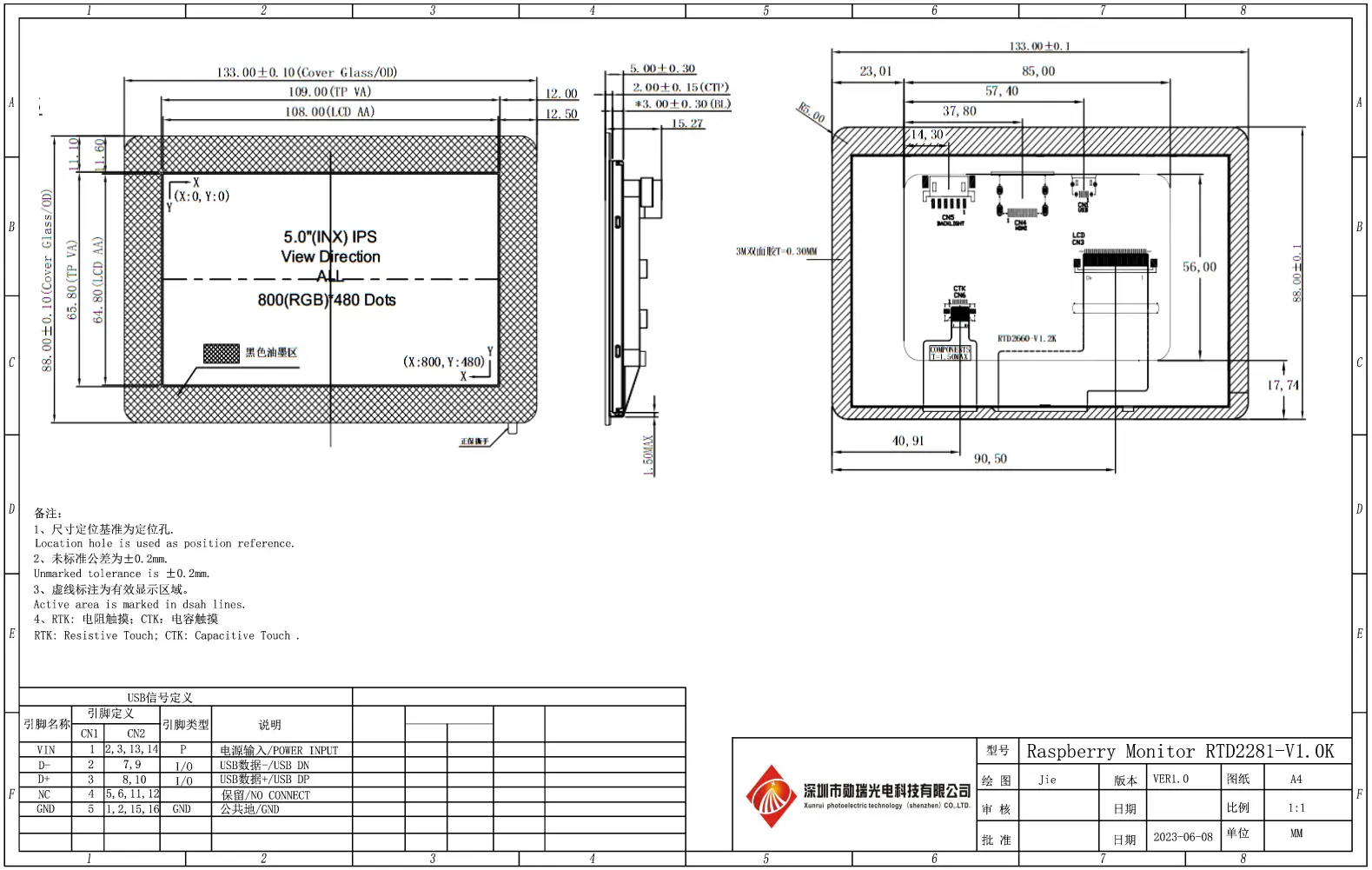

Mechanical Drawing
Specification Parameters
Feature
Spec
Model Name
H050IWV40I3506-CT30-RTD2281-1.0K
LCD Size
5 inch
Display Format
800×480
Interface
HDMI 40pin
Luminance
300 cd/m2
Touch screen
capacitive touch
Viewing Direction
ALL
Color Depth
16.7M
Driver IC
ST7265
LCM+CTP (W x H x D) (mm)
120.7*75.8*15.27
Active Area(mm)
108 x 64.8
Operating Temperature
-20℃ ~ +70℃
Storage Temperature
-30℃ ~ +80℃
Operating Voltage
18V
Interface Definition
NO.
SYMBOL
I/O
Function
1
VLED-
P
Power for LED backlight (Anode)
2
VLED+
P
Power for LED backlight (Cathode)
3
GND
P
Power ground
4
DVDD
P
Power for Panel
5
R0
I
Red data (LSB)
6
R1
I
Red data
7
R2
I
Red data
8
R3
I
Red data
9
R4
I
Red data
10
R5
I
Red data
11
R6
I
Red data
12
R7
I
Red data (MSB)
13
G0
I
Green data (LSB)
14
G1
I
Green data
15
G2
I
Green data
16
G3
I
Green data
17
G4
I
Green data
18
G5
I
Green data
19
G6
I
Green data
20
G7
I
Green data (MSB)
21
B0
I
Blue data (LSB)
22
B1
I
Blue data
23
B2
I
Blue data
24
B3
I
Blue data
25
B4
I
Blue data
26
B5
I
Blue data
27
B6
I
Blue data
28
B7
I
Blue data (MSB)
29
GND
P
Power ground
30
DCLK
I
Sample clock
31
DISP
I
Sample clock
32
HS
I
Horizontal Sync Input
33
VS
I
Vertical Sync Input
34
DE
I
Data Input Enable
35
NC
NC
NC
36
GND
P
Power ground
37
XR
I
TP X-Right
38
YD
I
TP Y-Bottom
39
XL
I
TP X-Left
40
YU
I
TP Y-Up
Featured Products
2 inch 480×240 RGB 40pin 150nit TN TFT ...
2.4 inch 240×320 MCU 40pin interface 25...
2.8 inch 240×320 MCU 30pin interface 25...
3.5 inch 320×240 RGB 54pin interface 35...
4.3 inch TFT LCD 800×480 RGB 40pin inte...
5 inch 800×480 1200nit High brightness ...
7 inch 1024×600 1000nit High brightness...
8 inch TFT LCD module 800×1280 MIPI 31p...
10.1 inch TFT LCD module 1280×800 LVDS ...
13.3 inch 1920×1080 EDP 30PIN 280nit IP...
Frequently Asked Questions (FAQ)
What are the main interface connections for this 5-inch TFT LCD module?
This module supports a direct HDMI connection for video input and utilizes a USB interface for plug-and-play capacitive touch signal transmission.
Which development platforms and operating systems are compatible?
It is compatible with mainstream embedded boards and systems including Raspberry Pi, NVIDIA Jetson, STM32, RK series, and standard PC architectures.
What type of touch screen does this module feature?
It features a multi-point capacitive touch screen (CTP) based on ITO conductive film, providing sensitive operation and multi-touch gesture support like pinch-to-zoom and sliding.
What is the operating temperature range for industrial use?
The module features a wide operating temperature range from -20℃ to +70℃, ensuring reliable performance in demanding industrial and outdoor environments.
What display technology and resolution does this screen provide?
The screen is built with IPS full-viewing angle technology, offering an 800×480 resolution, 300 cd/m² luminance, and 16.7M color depth for sharp visuals from all angles.
