Industry Whitepaper & Strategic Insights

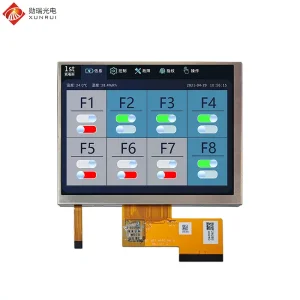

The 5.7-Inch Display Architecture: Engineering Viability & Evolution
An authoritative engineering assessment on why the classic 4:3 5.7-inch form factor remains an irreplaceable anchor across industrial human-machine interfaces, medical diagnostic equipment, and rugged instrumentation.
In the landscape of modern flat panel displays, where widescreen consumer formats (16:9 and 19.5:9) dominate consumer electronics, the 5.7 inch display module commands a unique and permanent stronghold in industrial OEM applications. Originating as the undisputed worldwide standard for 4:3 industrial automation screens, 5.7-inch displays (traditionally 320×240 QVGA and 640×480 VGA) remain embedded in millions of factory automation systems, computerized numerical controllers (CNC), medical patient monitors, and marine navigational equipment worldwide.
However, global original equipment manufacturers (OEMs) face an escalating supply-chain dilemma: legacy suppliers (such as Kyocera, Sharp, and Ampire) have systematically discontinued or deprioritized older 5.7" lines, stranding engineering teams with active product lifecycles. Shenzhen Xunrui Optoelectronic Technology Co., Ltd. (XUNRUI) bridges this engineering void. By re-engineering the 5.7-inch module with modern In-Plane Switching (IPS) liquid crystal chemistry, long-life solid-state LED backlights (>50,000 hours to half-life), and flexible signal routing (RGB, LVDS, and MIPI), Xunrui offers industrial clients a drop-in architectural replacement that outperforms legacy panels across every radiometric and optical metric.
50,000+
LED Backlight Lifetime (Hours to 50% Typ.)
85/85/85/85
IPS Symmetrical Viewing Angle (° L/R/U/D)
-30~+85
Industrial Operating Temperature (°C)
1000+
Custom Peak Luminance (cd/m² Nits)
Technical Benchmark: Legacy 5.7" TN vs. Xunrui Custom 5.7" IPS Architecture
| Performance Vector | Legacy 5.7" CCFL / TN Display | Xunrui Custom 5.7" IPS Module | Operational Impact & Engineering Benefit |
|---|---|---|---|
| Optical LC Mode | Twisted Nematic (TN), 6:00 or 12:00 Gray Inversion | True IPS (All-Viewing Direction) | Eliminates color distortion when viewed from steep operator angles in rackmount or console installations. |
| Native Resolution | QVGA (320×240) or coarse VGA | VGA (640×480) up to 720p / MIPI | Enables crisp rendering of micro-fonts, vector graphs, and modernized graphical user interface (GUI) libraries (Qt, TouchGFX, LVGL). |
| Backlight & Thermals | CCFL or early LED (requires HV inverter, fragile) | High-Efficacy Solid State Edge-Lit LED | Lower thermal footprint, eliminates high-voltage inverters, operates safely in Class I Div 2 hazardous environments. |
| Luminance Scalability | 200 – 350 cd/m² (Unusable under direct sun) | 400 – 1,200+ cd/m² Sunlight Readable | Preserves readability in outdoor refueling stations, agricultural tractor cockpits, and marine instrumentation. |
| Touch Layer Integration | 4-Wire Resistive, 78% Transmittance, Film Glare | Optical Bonded PCAP / Anti-Glare Glass | Multi-touch operation, water rejection, glove capability, surface hardness ≥7H, IK08 impact resistance. |
| Lifecycle Guarantee | Obsolete / End-of-Life (EOL) Risk | 7 to 10+ Years Controlled Availability | Guarantees bill-of-materials (BOM) stability, avoiding costly medical or defense recertification cycles. |
"Retaining a 5.7-inch mechanical footprint while modernizing the optical stack represents the highest ROI retrofit path for industrial electronics. It protects existing sheet metal dies, NEMA/IP-rated cast enclosures, and PCB mainboards while delivering a modern, smartphone-level touch interaction."
Industrial Solution Stacks
Engineered Hardware Solutions for Harsh Operating Environments
Tailored electro-optical architectures solving severe challenges in illumination, thermal expansion, EMI emissions, and interface compatibility.
Optical Bonding & Anti-Reflective Stacks
By filling the internal air gap between the 5.7" LCD cell and cover glass with index-matched optical clear adhesive (OCA) or liquid resin (LOCA), internal reflection drops from 13.5% to under 0.2%. Eliminates internal fogging in humid climates and boosts structural shock endurance by 300%.
LOCA / OCA Bonding
AR / AG / AF Coatings
IK08 Impact Rated
Extended Thermal & Polarizer Hardening
Industrial machinery often operates in sub-zero freezer warehouses (-30°C) or sealed unventilated automotive cabs reaching +85°C. Xunrui integrates wide-temperature LC fluid with high-clearing-point isotropic polarizers, preventing liquid crystal blackouts under intensive thermal solar radiation.
-30°C to +85°C Working
Anti-Solar Clearning
Thermal Pad Dissipation
Custom Signal Bridging & FPC Routing
Preserve your motherboard without redesigning pinouts. Xunrui provides custom Flexible Printed Circuit (FPC) routing to match existing 33-pin, 40-pin, or 50-pin connectors. In addition, we design onboard interface bridge controllers converting Parallel RGB to dual-channel LVDS, MIPI DSI, or HDMI.
Custom FPC Pinout
RGB / LVDS / MIPI
Drop-in Legacy Emulation
Global OEM Sourcing Insights
Meeting Diverse Global Procurement Demands
Analyzing structural specifications demanded by European, North American, and Asian enterprise purchasers across discrete vertical sectors.
Industrial PLC & CNC Robotics
European and American machinery makers require ruggedized 5.7" display modules capable of immune performance under severe EMI/EMC environments (variable frequency drive interference). Demands include 4-wire resistive touch for thick leather glove operation, or noise-immune PCAP driven by industrial EETI controllers.
EMC Class B Compliant
Glove & Water Rejection
Resistive & PCAP
Medical Diagnostics & Patient Monitors
Medical OEMs mandate strict consistency in chromaticity coordinates, high contrast ratios (>800:1), and non-porous glass surfaces compatible with hospital-grade chemical disinfectants (isopropanol, bleach). Xunrui designs tailored cover plates featuring flush bezels and anti-bacterial coatings.
ISO 13485 Alignment
Chemical Resistant Glass
Accurate Color Gamut
Field Test & Marine Instrumentation
Handheld oscilloscopes, spectrum analyzers, and marine depth-sounders require maximum battery conservation paired with total sunlight legibility. We engineer high-efficiency LED arrays exceeding 1000 nits with custom dimming circuits capable of micro-fine 0.1% night-mode dimming.
1000+ Nit Sunlight Readable
Night-Vision Dimming
Low-Power Drivers
Quality Architecture & Compliance
End-to-End Quality Gates & Regulatory Compliance
Shenzhen Xunrui Optoelectronic Technology operates modern ISO 9001 and ISO 14001 certified manufacturing facilities, implementing rigorous 5-stage defect screening on every production batch.
01
IQC Incoming Material Audit
Microscopic inspection of raw glass substrates, polarizers, driver IC wafer lots, and LED emitter forward-voltage sorting to guarantee 100% uniformity in batch chromaticity.
02
Precision FOG Automated Bonding
High-precision Film-On-Glass (FOG) thermocompression bonding within Class 1,000 cleanrooms. Automated optical inspection (AOI) verifies micron-level anisotropic conductive film (ACF) particle crushing.
03
High-Temp Burn-In Aging
Continuous dynamic thermal cycling and electrical burn-in at +50°C to +60°C for 24 to 72 hours, weeding out infant mortality defects in driver silicon and backlight LEDs.
04
Optical Spectrometry Calibration
100% luminance validation, 9-point brightness uniformity test (>85% threshold), contrast measurement, and chromaticity verification via automated Topcon colorimeters.
05
Environmental & ESD Testing
Drop, vibration, high-humidity storage (90% RH @ 60°C), and contact/air discharge electrostatic tests (±8kV / ±15kV) per IEC 61000-4-2 international standards.
06
OQC Outgoing & Secure Export Packing
Anti-static vacuum nitrogen packing, custom shock-absorbent EPE foam nests, and traceable batch barcoding ensure pristine transit to European and North American manufacturing hubs.
Future Technology Horizon
Technology Roadmap: Next-Generation 5.7" Modules
How Xunrui Optoelectronics is infusing emerging micro-display technologies into classic industrial form factors over the next 3 to 5 years.
Mini-LED Local Dimming Arrays
Migrating from edge-lit light bars to dense 576-zone Mini-LED matrix backlights. This delivers true OLED-grade infinite black levels, eliminates light bleed, elevates contrast to 100,000:1, and cuts system power consumption by 35% in dark-mode industrial UIs.
576 Local Zones
100,000:1 Contrast
Zero Burn-in
Smart Embedded UI Acceleration
Integrating compact ARM Cortex-M7 graphics controllers and flash memory directly on the display module substrate. Developers can trigger high-resolution 60fps animations and sensor widgets directly through simple UART, CAN-bus, or RS485 communication protocols.
UART / CAN-Bus Control
Onboard GPU Engine
Zero Host CPU Load
Haptic Feedback Glass Integration
Incorporating localized piezo-electric transducers beneath the tempered cover glass. Provides instant physical tactile confirmation when virtual buttons are pressed on the touch screen, crucial for blind operation in vibrating industrial vehicle cabs.
Localized Haptics
Tactile Key Emulation
Vibration Proof
Procurement & Technical Q&A
Frequently Asked Questions by Industrial Engineers
Straightforward answers addressing design compatibility, custom tooling cycles, MOQ feasibility, and lifecycle maintenance.
Can Xunrui provide a drop-in 5.7-inch replacement for legacy Kyocera or Ampire displays without requiring chassis modifications?
Yes. Xunrui specializes in mechanical and electrical emulation. We can fabricate custom metal bezel bezels and flexible printed circuits (FPC) that match the exact mounting hole coordinates, active display area offsets, and 33-pin or 40-pin connector pinouts of discontinued panels (such as Kyocera KCS057 or Ampire AM-640480 series). This drop-in capability allows OEM clients to modernize their display without costly tooling changes for sheet metal, plastic injection moulds, or carrier PCBs.
What is the minimum order quantity (MOQ) and lead time for custom 5.7-inch display prototypes and mass production?
To assist our OEM clients during development and field certification, we provide an initial small-batch engineering trial run of 5 to 500 units following sample sign-off. Custom mass production begins at a manageable 1,000 units. Prototype engineering drawings are typically completed within 3 to 5 business days; physical tooling and custom working samples require 3 to 4 weeks. Standard volume production lead time is 4 to 6 weeks.
How do you resolve PCAP touch panel false triggers caused by water spray, conductive fluids, or heavy electrical noise?
We utilize industrial touch controller ICs from EETI and Ilitek paired with custom mutual and self-capacitance firmware profiles. By dynamically scanning baseline capacitance and sensing finger differential vectors, our touch solutions reject conductive water droplets, seawater puddles, and high-frequency common-mode noise generated by neighboring servos or medical electrosurgical equipment. We also calibrate sensitivity to operate reliably with 5mm heavy industrial rubber gloves.
What are the distinct advantages of optical bonding over conventional tape or air-gap perimeter bonding?
Air-gap perimeter bonding leaves an internal void between the cover glass and LCD cell. This void creates two reflective surfaces that bounce 4% to 9% of incident ambient sunlight back into the user's eyes, drastically washing out screen contrast. Furthermore, thermal swings cause air-gap displays to suck in ambient moisture, causing internal condensation and condensation fogging. Xunrui's full optical bonding uses silicone or acrylic-based optical adhesives that index-match the refractive index of glass (n ≈ 1.51), eliminating internal reflections, preventing condensation, and greatly increasing shock resistance against mechanical impact.
How does Xunrui guarantee long-term component availability and manage Product Change Notifications (PCN)?
We understand that medical, industrial, and railway products have certified lifetimes exceeding 7 to 10 years. Xunrui sources raw display glass from primary tier-1 fabs with committed roadmaps and keeps safety buffer inventories of critical driver ICs. If an internal component approaches End-of-Life (EOL), we provide clients with formal Product Change Notifications (PCN) at least 6 to 12 months in advance, along with last-time-buy (LTB) options and pin-compatible successor paths to guarantee supply-chain continuity without line stoppages.
Which customization options are available for the display cover glass?
We provide comprehensive mechanical and optical glass customization: chemically strengthened soda-lime or aluminosilicate (Gorilla/Dragontrail) glass from 0.55mm to 6.0mm thickness, custom edge profiling (2.5D, stepped edges, chamfers, waterjet cutouts for physical buttons), ceramic high-temperature silkscreen printing in arbitrary PMS colors with client logos, and anti-reflective (AR), anti-glare (AG), anti-fingerprint (AF), and anti-microbial vacuum sputter coatings.
