Standard & Custom Display Modules (Batch 01)
Explore our foundational range of ultra-narrow, bar-type, and standard industrial TFT display stacks ready for turnkey integration and rapid mechanical sampling.
Custom 6.9 inch 280×1424 MIPI 30pin interface long strip IPS TFT LCD module Manufacturer, Factories
View Specifications
Custom 5 inch 480×272 TN TFT LCD Module with resistive touch panel Manufacturers, Factory
View Specifications
Custom 7 inch TFT LCD module 800×480 RGB 50pin interface 250nit TN screen Supplier, Suppliers
View Specifications
Custom 9 inch 800×480 RGB 50pin interface 500nit TN TFT LCD module Manufacturer, Suppliers
View Specifications

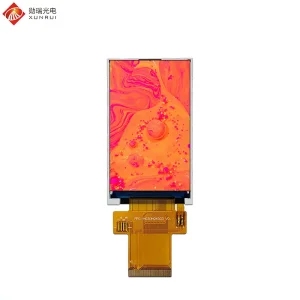

Custom 3 inch 240×400 RGB 45pin 400nit IPS TFT LCD Module Manufacturers, Factories
View Specifications
China 5 inch 800×480 TN TFT LCD display with resistive touch panel Manufacturer, Suppliers
View Specifications
China 3.5 inch 320×240 RGB 54pin interface 350nit TN TFT LCD module Supplier, Factories
View Specifications
Custom 3.5 inch 320×240 960nit IPS TFT LCD With capacitive touch panel Supplier, Factories
View SpecificationsEngineering Architecture of Custom 6.2 TFT LCD Modules
Analyzing physical dimensions, pixel layout geometry, interface integrity, and optical performance criteria essential for mission-critical embedded systems.
Form Factor & Aspect Ratio Optimization
The 6.2-inch display geometry occupies an essential middle ground between traditional 5.0" handheld displays and bulky 7.0" panels. Engineered primarily in elongated ratios (such as 16:9, 18:9, and customized bar-strip ratios), our 6.2" liquid crystal modules enable space-constrained enclosures in automotive telematics, test equipment, and 2U rackmount server chassis to display rich visual analytics without mechanical housing widening.
Optical Performance & IPS All-View Technology
Utilizing high-aperture In-Plane Switching (IPS) panel structures, our 6.2" TFT arrays eliminate grayscale inversion and color shifts across full symmetric viewing angles (85°/85°/85°/85°). With luminance customizable from 300 nits indoor standard up to 1,500 nits ultra-high-brightness, paired with anti-reflective (AR) and anti-glare (AG) surface treatments, readability is preserved under direct outdoor solar radiation.
Signal Integrity & High-Speed Bus Protocols
Engineered for low-latency transmission and minimal EMI emission, custom 6.2 TFT modules support 4-lane MIPI-DSI, single/dual-channel LVDS, 24-bit Parallel RGB, and high-speed SPI interfaces. Integrated FPC designs include embedded differential impedance control (100Ω ±10%), internal ground mesh shielding, and TVS array protection to comply with stringent EN 61000-4-2 industrial ESD thresholds.
| Parameter | Standard Commercial 6.2" | XUNRUI Custom Industrial 6.2" | Automotive / Rugged Outdoor Grade |
|---|---|---|---|
| Typical Resolution | 800×480 / 720×1280 | 720×1560 / 1024×600 / 1280×720 (Custom) | 1280×720 / 1920×1080 (AEC-Q Qualified) |
| Luminance (Nits) | 250 – 350 cd/m² | 500 – 1,000 cd/m² (Configurable) | 1,000 – 1,600 cd/m² (Sunlight Readable) |
| Operating Temp Range | -10°C to +60°C | -20°C to +70°C | -30°C to +85°C (Extended Thermal Core) |
| Touch Sensor Stack | Standard Air-gap RTP / G+F PCAP | Optical Bonded G+G PCAP / Wet-glove RTP | Vandal-proof IK08/IK10, Chemically Strengthened Cover |
| Backlight Half-Life | 20,000 – 30,000 Hours | 50,000 Hours (Constant-Current Driven) | 70,000+ Hours with Smart PWM Dimming |
| Supply Longevity | 1 – 2 Years | 5 – 7 Years Guaranteed Lifecycle | 7 – 10+ Years Controlled PCN/EOL Roadmap |
Global Enterprise Sourcing & Supply Chain Resilience
Mitigate engineering redesign risks, manage raw material allocations, and secure long-term availability through direct manufacturer partnership.
Obsolescence Prevention (PCN/EOL)
Sudden component obsolescence destabilizes regulated product lines. Xunrui enforces a strict 6-to-12-month Product Change Notification (PCN) policy and guarantees drop-in replacement pin-compatibility via internal driver board and FPC adaptation, shielding your project from costly PCB redesigns.
Small-Batch Pilot Feasibility
Navigating the transition from 3D-printed prototypes to mass manufacturing is a primary barrier for innovative hardware teams. We de-risk capitalization by offering low-volume pilot production runs (5 to 500 units) after initial tooling sign-off before committing to the standard 1,000+ unit MOQ.
Direct Factory Cost Transparency
By eliminating trading intermediaries and managing the full fabrication lifecycle—including glass cutting, COG/FOG bonding, backlight assembly, and cleanroom OCA laminating—in our 5,000m² Shenzhen plant, buyers gain 20–35% direct cost efficiency alongside unhindered access to senior optical engineers.
Comprehensive EMI/EMC Assurance
Electromagnetic radiation from high-speed clock lines can cripple wireless connectivity and fail CE/FCC certifications. Our custom 6.2 TFT modules incorporate backplane grounding copper foils, ferrites on FPC routings, and low-noise constant current drivers designed specifically to satisfy CISPR 25 Class 5 limits.
Application-Specific 6.2 TFT LCD Solutions
Purpose-built optical and mechanical configurations tailored to the harsh operating conditions of industrial automation, transportation, medicine, and critical infrastructure.
Industrial Automation & Smart Factory HMIs
Factory environments expose displays to mechanical shock, electrical noise, oil mists, and heavy machine vibration. For automated assembly cells, robotic controllers, and PLC terminals, our 6.2-inch modules pair rugged 4-wire resistive touch panels or thick vandal-proof capacitive sensors with wide-temperature liquid crystal chemistry (-30°C to +80°C). Resistant to false triggers from water spray and compatible with heavy industrial gloves.
Automotive Telematics & E-Mobility Dashboards
Modern two-wheel electric vehicles, agricultural tractors, and commercial vehicle sub-consoles favor the 6.2" widescreen format. Our automotive-tailored packages integrate high-efficiency LED arrays delivering up to 1,200 cd/m² for uncompromised legibility under direct midday sunlight, accompanied by anti-glare polarizers, AEC-Q100 qualified timing controllers, and fast-response liquid crystals that prevent low-temperature image smear.
Medical Diagnostics & Patient Telemetry
Diagnostic equipment demands exact chrominance fidelity and wide viewing compliance (IEC 60601-1-2 EMC compatibility). Our 6.2-inch medical grade panels incorporate high-gamut IPS glass matrices, antimicrobial surface treatments, and continuous optical bonding using optically clear silicone adhesives (OCR) that eliminate internal moisture condensation while resisting aggressive hospital disinfectants and UV sterilizing sweeps.
Outdoor Kiosks, EVSE & Marine Navigation
Unattended public infrastructure faces extreme weather variations, high UV degradation, and vandalism. We build custom 6.2-inch display stacks with 3mm to 6mm chemically strengthened tempered cover glass (IK08/IK10 rated), integrated UV-blocking polarizers to prevent isotropic black spot transition, and localized thermal dissipation sinks guaranteeing continuous 24/7/365 outdoor operation.
Smart Home, Smart Metering & Luxury Appliances
High-end home automation touchpads and smart architectural control panels demand a sleek, smartphone-like aesthetic. We deliver custom 6.2" borderless IPS displays with silk-screen printed edge glass, hidden icons, and integrated ambient light sensors that automatically dim backlights at night to save system power while blending organically into modern architectural interiors.
Aerospace & Rugged Handheld Computing
For military logistics, surveying data loggers, and flight support instrumentation, weight, battery power, and optical clarity are paramount. We construct transflective or semi-transmissive 6.2" custom LCD assemblies that harvest ambient exterior lighting to maintain extreme readability while allowing backlight throttling to extend field battery life significantly.
Gate-Controlled Customization Process
From initial CAD review to multi-thousand mass shipments, our structured engineering gateway validates mechanical, electrical, and optical margins before tooling capital is locked.
Requirements & Thermal Feasibility
Review of operating envelope, enclosure CAD, target luminance, driver IC compatibility, and optical requirements with Xunrui display architects.
Tooling Drawing & Electrical Sign-off
Generation of comprehensive engineering drawings covering glass active area, FPC pinouts, backlight step-up voltages, and custom cover lens dimensions.
Rapid Prototyping & Optical Bench Testing
Fabrication of physical golden samples in our Shenzhen cleanroom. Comprehensive verification of chromaticity, contrast, viewing angles, and FPC pull strength.
Pilot Run (5 to 500 Units)
De-risk volume capital with a managed pre-series production run to validate client line assembly, automated optical inspection jigs, and firmware drivers.
Mass Production & Automated Aging
Transition to scaled volume runs (MOQ 1,000+ units) featuring automated FOG bonding, 48–72 hour high-temp operational burn-in, and full vacuum packaging.
Mechanical & Cover Glass
• Custom shapes, circular corners, CNC waterjet cutouts
• 0.55mm to 6.0mm chemically hardened Gorilla/Dragontrail glass
• Ceramic ink silk screening with custom PMS corporate logos
• Surface finishes: Anti-Glare (AG), Anti-Reflective (AR), Anti-Fingerprint (AF)
Flexible Printed Circuit (FPC)
• Custom length, bend profiling, and custom component routing
• Integrated ESD grounding shields and copper foil tape
• Connector varieties: ZIF, BTB, or direct soldering pitch
• Integrated backlight driver circuits and booster configurations
Backlight & Bonding Technology
• Ultra-high brightness configurations up to 2,000 cd/m²
• Constant current low-power LED rails with 70,000hr MTBF
• LOCA (Liquid Optically Clear Adhesive) & OCA sheet bonding
• Touch-to-TFT full optical integration eliminating air gap reflections
5-Stage Quality Assurance Matrix
Operating under certified ISO 9001:2015 and ISO 14001:2015 frameworks, every single production lot undergoes zero-compromise physical and electrical inspection.
Gate 1: IQC Raw Material Audit
Spectrophotometric verification of raw glass, polarizing film transmittance, LED chromaticity binning, and microscopic FPC conductive gold trace inspection.
Gate 2: Cleanroom Glass Inspection
Micro-particle contamination control within our Class 1,000 cleanroom environments. High-precision laser inspection detects any substrate micro-fissures.
Gate 3: FOG Bonding & Thermal Aging
Automated ACF thermo-compression bonding of driver ICs and FPCs, followed immediately by continuous elevated-temperature operational stress tests.
Gate 4 & 5: Final AOI & OQC
100% automated optical pattern verification checking for dead pixels, backlight uniformity, touch coordinate linearity, and hermetic vacuum export crating.
Technology Roadmap & Future Outlook (2025–2030)
How Xunrui is integrating emerging optoelectronic architectures into rugged medium-format embedded display modules.
Mini-LED Local Dimming Backlights
Migrating from conventional edge-lit LED configurations to full-array local dimming Mini-LED backlights. With over 512 dynamic dimming zones on 6.2-inch configurations, contrast ratios leap to 1,000,000:1 with deep true blacks, fulfilling the extreme dynamic range requirements of medical imaging and nocturnal automotive avionics while reducing operational power consumption by 30%.
TDDI (Touch and Display Driver Integration)
By consolidating display timing logic and projected capacitive touch processing into a unified monolithic silicon IC, our next-generation 6.2" custom modules shrink module border bezel thicknesses by 40% and eliminate redundant FPC layers, fundamentally boosting signal-to-noise touch ratios and preventing capacitive jitter under intense electrical noise.
Transflective & Low-Power Memory-in-Pixel
To serve IoT remote edge monitors and solar-powered field equipment, Xunrui is expanding transflective cellular layering on medium-format displays. By utilizing natural ambient photon reflectance for daylight illumination alongside internal LED backlighting for night visibility, display sub-systems can maintain persistent visual status while consuming micro-watt level static current.
Frequently Asked Questions by OEM Engineering Teams
Direct answers from our senior LCD engineering and international project management departments.
What is the standard MOQ and lead time for custom 6.2 TFT LCD projects?
For custom tooling (including tailored FPC shapes, custom cover lenses, or modified backlights), initial sample prototypes are typically delivered in 3 to 4 weeks following drawing approval. Following sample sign-off, we support a one-time trial batch of 5 to 500 units to validate tooling and line assembly. Full customized mass production orders require an MOQ of 1,000 units, with typical delivery cycles of 4 to 6 weeks.
Should our application adopt Capacitive (PCAP) or Resistive (RTP) touch?
Capacitive touch (PCAP) is optimal for high-aesthetic smart home, medical, and handheld systems requiring smooth multi-touch gestures, high optical clarity (≥88%), and hardened cover glass protection. Resistive touch (RTP) remains the proven, cost-effective choice for harsh factory floors, industrial test gear, and heavy marine machinery where operators must use thick leather/rubber gloves, operate with styluses, or work in environments subject to standing water droplets and massive electromagnetic noise.
How does Xunrui achieve true sunlight readability without thermal runaway?
Sunlight readability requires balancing raw luminous flux and surface reflectance. Rather than simply over-driving LED rails (which generates extreme heat and degrades liquid crystal life), we combine high-efficiency multi-chip Nichia LEDs delivering 1,000–1,500 nits with optical bonding (OCA/LOCA) to eliminate internal air reflections, finished with circular polarizers and anti-reflective (AR) surface etching. This yields exceptional contrast under direct sunlight while drawing modest system power.
Can you provide matching HDMI, LVDS, or Raspberry Pi adapter driver boards?
Yes. In addition to bare panel modules, Xunrui designs and manufactures industrial-grade bridge and controller boards in-house. We supply ready-to-run driver boards accepting HDMI, VGA, composite AV, or Type-C video signals, converting directly to MIPI, LVDS, or RGB interfaces with onboard PWM backlight controls and integrated audio amplifiers for rapid prototyping and low-volume deployments.
How are PCN (Product Change Notifications) and product end-of-life handled?
We understand that industrial and medical certifications cost tens of thousands of dollars. We offer a guaranteed 5 to 7-year product availability lifecycle. If an upstream glass fab or driver IC manufacturer announces an EOL, Xunrui issues a formal PCN at least 6 months in advance, assists in qualifying second-source drop-in silicon, and coordinates last-time-buy (LTB) storage programs.
What environmental compliance and system certifications do you hold?
Shenzhen Xunrui Optoelectronic Technology operates under certified ISO 9001:2015 quality management and ISO 14001:2015 environmental standards. All manufactured LCD modules, touch stacks, adhesives, and electronics fully satisfy EU RoHS 2.0 (2011/65/EU and 2015/863) and REACH (EC 1907/2006) regulations, with complete third-party SGS test documentation supplied per lot.
Specialized & High-Density Display Modules (Batch 02)
Explore our compact wearable, medium instrument, and full HD wide-screen panels available for custom FPC and touch sensor integration.
China 2 inch 240×320 SPI 30PIN 250nit IPS TFT LCD Module Manufacturer, Suppliers
View Specifications
China 5.7 inch 640×480 RGB LVDS MIPI Interface IPS TFT LCD Module Manufacturer, Factory
View Specifications
China 5 inch 480×272 TN TFT LCD Module with capacitive touch panel Manufacturers, Factory
View Specifications
China 13.3 inch 1920×1080 EDP 30PIN 280nit IPS TFT LCD Module Suppliers, Factories
View Specifications
China 3.5 inch TFT LCD display 320×240 RGB 54pin interface 350nit TN Screen Manufacturer, Suppliers
View Specifications
China 4.3 inch 480×272 RGB 40pin interface 350nit TN TFT LCD module Manufacturer, Factories
View Specifications
China 7 inch 1024×600 MIPI 30PIN 350nit IPS TFT LCD Display Manufacturer, Suppliers
View Specifications
Custom 5 inch TFT LCD module 800×480 RGB 40pin interface 350nit IPS screen Supplier, Factories
View SpecificationsInitiate Your Custom 6.2 TFT LCD Engineering Evaluation
Send our Shenzhen engineering team your mechanical enclosure constraints, interface requirements, and target environment specs. Receive an initial 2D/3D integration drawing, optical stack recommendation, and detailed factory RFQ within 24 business hours.
