Engineering Precision: The 4-Inch TFT LCD Module Ecosystem
A comprehensive architectural breakdown of small-to-medium display modules designed for mission-critical electronic instruments.
IPS All-Perspective Viewing
Our 4-inch square and rectangular IPS modules deliver ultra-wide symmetrical viewing angles (80/80/80/80 or 85/85/85/85). Unlike basic TN cells, IPS liquid crystal alignment prevents grayscale inversion and chromatic shift when viewed off-axis, making it indispensable for shared operator interfaces and angled mounting enclosures.
High-Efficiency Backlight Optics
Equipped with customized low-power constant-current LED matrices, our custom 4 TFT modules scale from standard indoor ambient 350-nit illumination to high-lumen 1,000+ nit daylight-readable architectures. Optimized light-guide plates (LGP) and optical diffuser films minimize thermal dissipation while maintaining uniform luminance above 85%.
Signal Interface Flexibility
We configure standard and custom FPC layouts supporting MIPI DSI, parallel RGB (16/18/24-bit), SPI, MCU 8080/6800, and LVDS protocols. Integrated ST7701S, ILI9806E, or equivalent automotive/industrial-grade driver ICs ensure seamless compatibility with STM32, ESP32, NXP i.MX, and Raspberry Pi compute engines.
Direct China Manufacturing: Supply Chain & Customization Depth
Operating from Shenzhen's high-tech manufacturing cluster, Xunrui Optoelectronics integrates automated glass cutting, COG/FOG bonding, and custom cleanroom lamination.
Bespoke FPC & Mechanics
Custom FPC pinouts, gold-finger pitch, step thickness, EMI shielding foils, and tailor-made stamped metal frames to match unique mechanical enclosures without altering host motherboards.
Optical Bonding (LOCA/OCA)
Full air-gap elimination via optical bonding between the TFT display and cover glass. Drastically reduces surface reflection by up to 400%, boosts impact resistance, and stops internal fogging under humid conditions.
Cover Glass Surface Finishing
Custom chemically strengthened cover plates up to 6mm thick with IK08-IK10 impact ratings. Advanced surface processing including Anti-Glare (AG), Anti-Reflective (AR), and Anti-Fingerprint (AF/Oleophobic) layers.
Long-Term Lifecycle Roadmap
Strict EOL management providing continuous 5 to 7+ year product lifecycles. Stable wafer supply and backwards-compatible form-fit-function design mitigates obsolescence redesign cycles for enterprise projects.
International Procurement Criteria & Compliance Assurance
Aligning with European, North American, and Asian-Pacific industrial standards to guarantee turnkey import readiness and system validation.
| Evaluation Parameter | Consumer Grade Displays | Xunrui Industrial Grade 4" TFT Modules | Procurement & Engineering Gain |
|---|---|---|---|
| Operating Temperature | 0°C to +50°C | -20°C to +70°C / -30°C to +85°C | Eliminates freeze-lag and optical bubbling in outdoor climates |
| Touch Controller Noise Floor | Standard I2C Consumer IC | Industrial Ilitek / Goodix / FocalTech with High CS/RS Immunity | Passes IEC 61000-4-6 Conducted Immunity tests without false touches |
| Environmental Directives | Variable / Basic RoHS | 100% RoHS 2.0, REACH SVHC, Halogen-Free Certified | Seamless customs clearance and environmental auditing compliance |
| Batch Feasibility Support | Strict High MOQ (>5k pcs) | 5–500 pcs pilot run before mass 1,000+ unit scale | Validates tooling tolerances and real-world UI before massive budget lock |
Domain-Specific Applications for 4-Inch Display Modules
Proven deployment scenarios across mission-critical human-machine interfaces.
Smart Home Wall Controllers & Thermostats

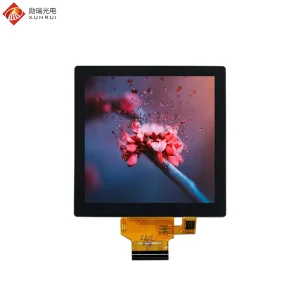

The 4-inch 480×480 square IPS TFT has become the gold standard for luxury HVAC controls and 86-type architectural switch boxes. Supporting customizable cover glass printing, edge-beveling, and circular-cut windows, it integrates directly with wireless protocol stacks like Zigbee, Matter, and Wi-Fi 6.
Medical Handheld Diagnostics
Portable patient telemetry units, infusion pump programmers, and blood gas monitors require consistent color gamuts and true-black contrast ratios. Sealed PCAP touchscreens permit heavy chemical sanitization using alcohol and hospital-grade germicidal cleaners without delamination.
EV Charging Stations & Automotive Instruments
For Level 2 and Level 3 DC fast-charging terminals, our 4-inch sunlight-readable 1,000-nit modules provide crystal-clear kWh metrics and billing prompts under direct midday glare. The wide operating range (-30°C to +85°C) withstands blistering summers and freezing winters without response-time lag.
Next-Gen Trends in Small-to-Medium TFT Technology
Navigating the technological convergence of embedded UI, touch sensing, and ultra-low-power driver topologies.
Integrated Rotary Knob Displays
Transitioning from static displays to hollow-shaft rotary encoder integrations. Xunrui develops 4-inch square and round assemblies featuring dynamic central screens encircled by tactile aluminum alloy outer bezels for smart ovens, washers, and laboratory equipment.
Ultra-Low Power Smart Standby
By leveraging self-refresh driver architectures and intelligent partial-screen updating over SPI/MIPI commands, current consumption during idle display states can drop by up to 75%. This significantly expands battery lifespans in portable inspection devices and field meters.
Wet-Finger & Thick-Glove Touch Firmware
Advanced algorithmic noise suppression inside specialized capacitive controllers enables accurate multi-touch operation when covered in water, saline solutions, grease, or while operated by staff wearing up to 5mm industrial latex, nitrile, or winter work gloves.
Frequently Asked Questions (Buyer & Engineering FAQ)
Clear, direct technical clarification addressing procurement, mechanical customization, and system integration.
Q: What is the standard turnaround time for custom 4" TFT LCD prototypes?
Initial engineering CAD drawings (FPC route, mechanical frame, pinout schematic) are delivered within 3–5 working days. Once mechanical specifications are approved, prototype tooling and sample fabrication typically take 15–20 working days.
Q: How do you ensure optical readability under direct outdoor sunlight?
We deploy high-output LED backlights rated from 800 to 1,200+ nits, match high-transmission polarizers, and recommend OCA/LOCA full optical bonding to eliminate internal air reflections, keeping content legible under 100,000+ lux ambient sunlight.
Q: Can the FPC connector and pin assignment be modified to fit our existing PCB?
Yes. Custom FPC length, bend profile, connector pitch (0.5mm, 0.8mm, 1.0mm, or ZIF/board-to-board), and pin assignments are standard services. We match your host processor's GPIO arrangement to eliminate daughterboards.
Q: What quality inspection protocols are executed before shipment?
Every lot passes our 5-gate quality control: IQC incoming glass/IC inspection, inline COG/FOG bonding check, continuous high-temp operational aging (48–72 hours), 100% final cosmetic and optical test, and outgoing OQC packaging audit.
